Description
TrailGuard Super Duty bolts directly to the main frame rails for maximum strength and bumper protection. The optional lower engine skid plate is not included. Contact us for its current availability. TrailGuard comes fully welded, powder coated, and ready to bolt on. PROUDLY MADE IN THE USA.
BUILD
- Main Bar and Top Bar — 1.5" x .120" wall CNC bent DOM Steel Tubing
- Frame Mounts — 1/4" CNC bent Grade 50 High Strength Steel
- Front Skid Plate — 3/16" CNC Grade 50 High Strength Steel
- LED Skid Mount 3/16" CNC Grade 50 High Strength Steel. Designed to bolt on Baja Designs S2 Pro or S2 Sport
- Hardware — Assorted Grade 8 bolts and nuts including 1/4", 3/8", and 1/2" sizes.
- Powder Coated — Comes powder coated in Stealth Black.
- Weight — 43 lbs with full features

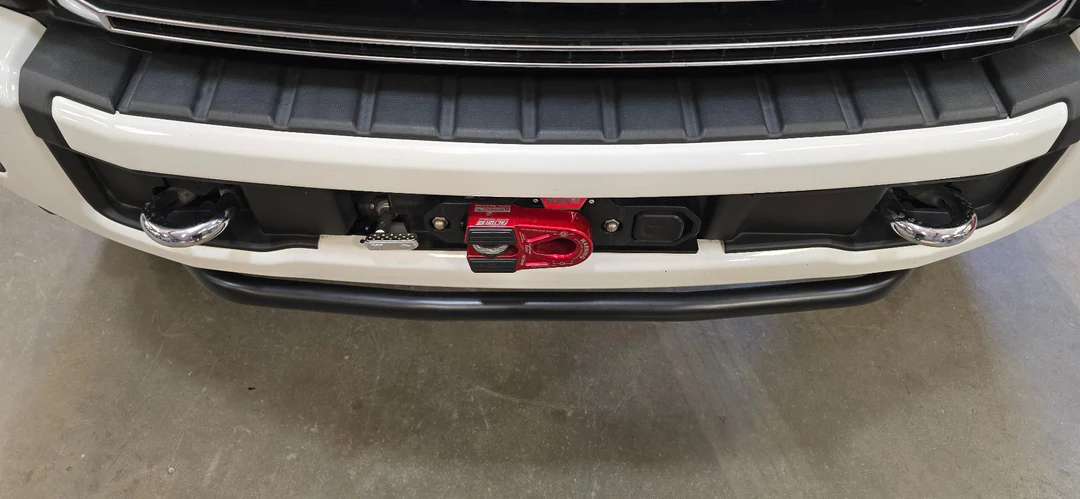

SIMPLE INSTALLATION
Once the factory lower valance (air dam) is removed, TrailGuard will bolt onto the frame rails. The best part is the factory front bumper does NOT need to be removed for installation. If necessary, the factory bumper can be loosened, raised and lowered to provide a closer or larger fit.

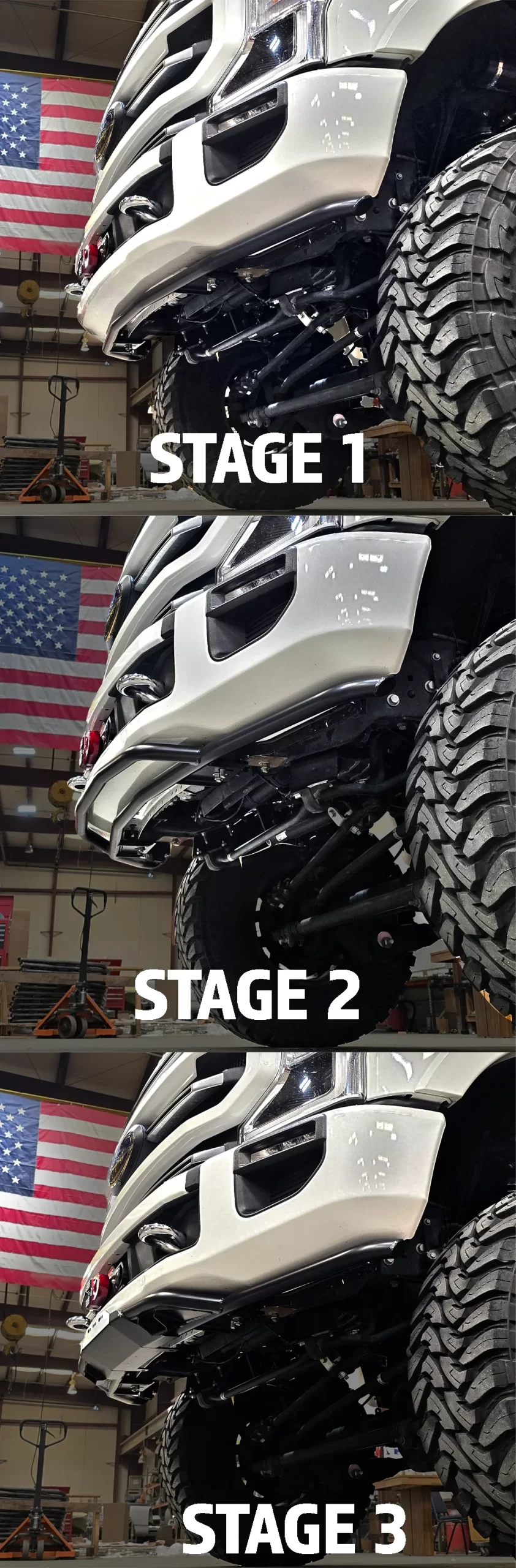

OPTIONS
- Stage 1
Main Bar only. For a sleek minimalist design. Comes with Frame Mounts and Hardware. - Stage 2
Main Bar and Top Bar. For a more aggressive design with added frontal protection. Comes with Frame Mounts and Hardware. - Stage 3
Main Bar, Top Bar, and Full plates. Front Plate for added protection w/ optional American flag cutout. The Morse Code holes along the top can be used to mount a license plate or additional light bar. Led side plates designed to mount Baja Designs S2 Sport or S2 Pro. Optional engine skid plate works only with Stage 3 and is not included. Contact us for availability.
DESIGN
The sleek and understated design of TrailGuard offers protection and transformation to the look of your Super Duty. TrailGuard was designed to complement and add to the OEM styling. This lower bumper guard transforms and protects the look of your Super Duty without adding a heavy aftermarket front bumper. Weighing close to 40 lbs, this is not a thin walled bumper mounted brush guard. We 3D scanned the bumper and frame of multiple trucks in order to design TrailGuard to fit very close to the factory bumper. The tube around the edge of the OEM bumper has been shortened to allow clearance for large and wide tires.

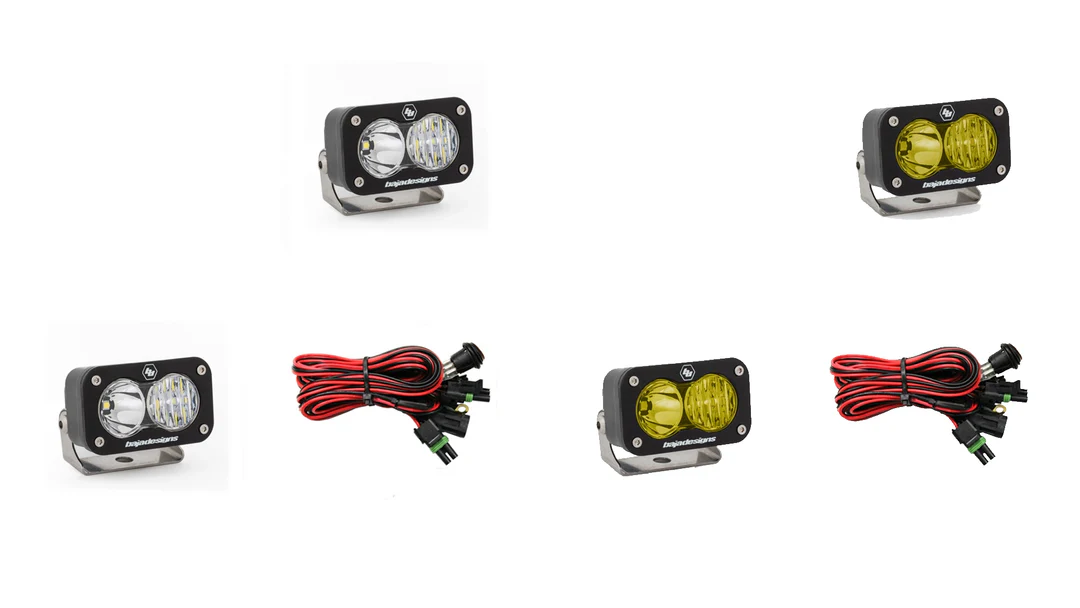

LED LIGHTS
We chose Baja Designs S2 series of LED lights due to their impressive power output in such a compact size. TrailGuard's LED light plates are designed to fit the S2 pods. The Baja Designs LED kits come in a pair with the wiring harness. The light packages currently offered in this listing use S2 Pro pods. The plates also support S2 Sport pods; check the package selected above for what is included. The S2 Sport outputs 1,581 lumens and the S2 Pro outputs 2,450 lumens. Please visit Baja Designs website for more detailed information.
