TrailSwing® HD for 1990-2027 GMC Sierra 2500

Description

Tow Rating Certification

• Class 4 – 10,000 lbs. Tested according to J684 Standards. See our test results here.

Features

• Designed to mount up to a 40" tire. Height adjustable 1/4" steel tire mount.

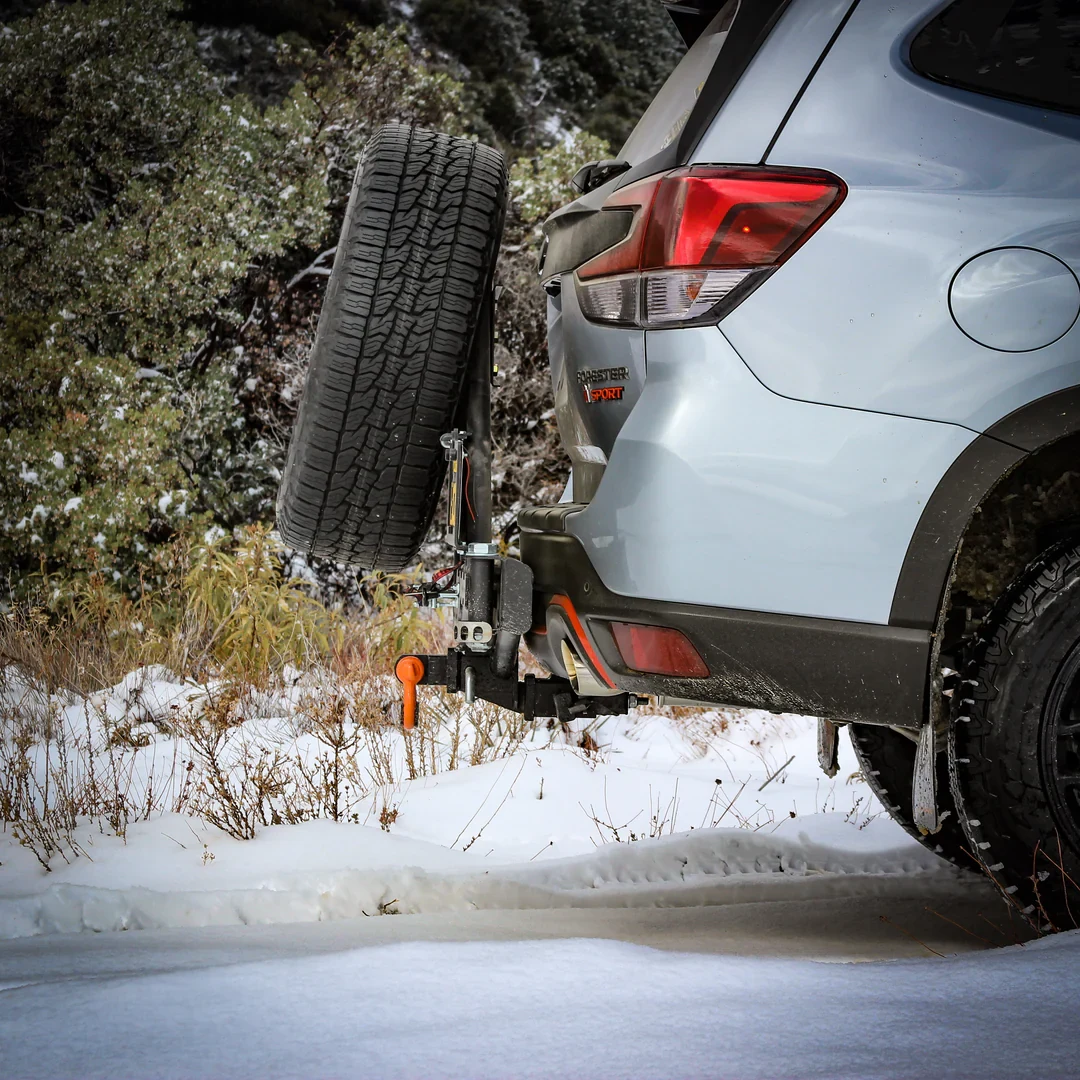

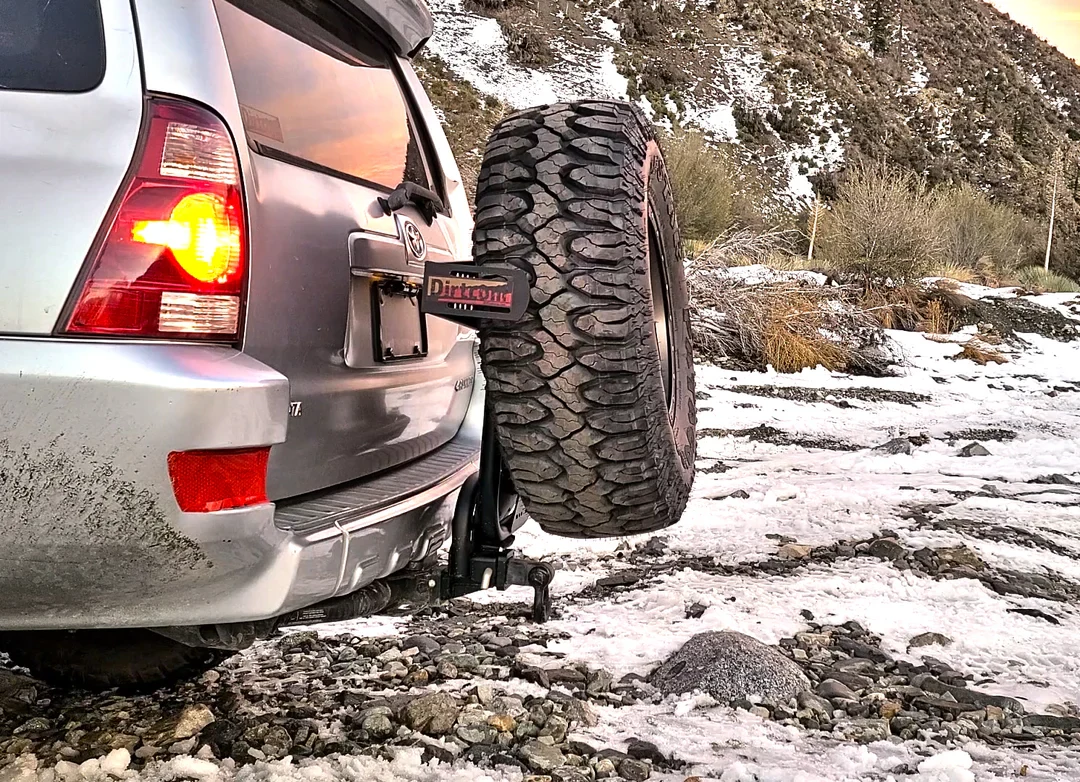

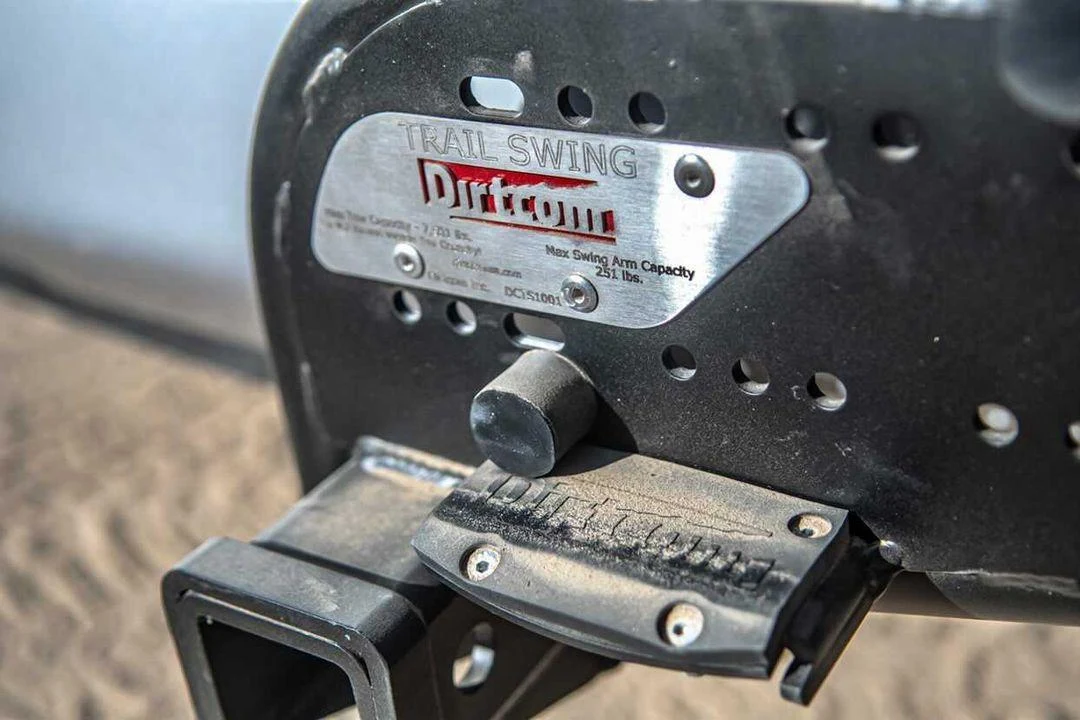

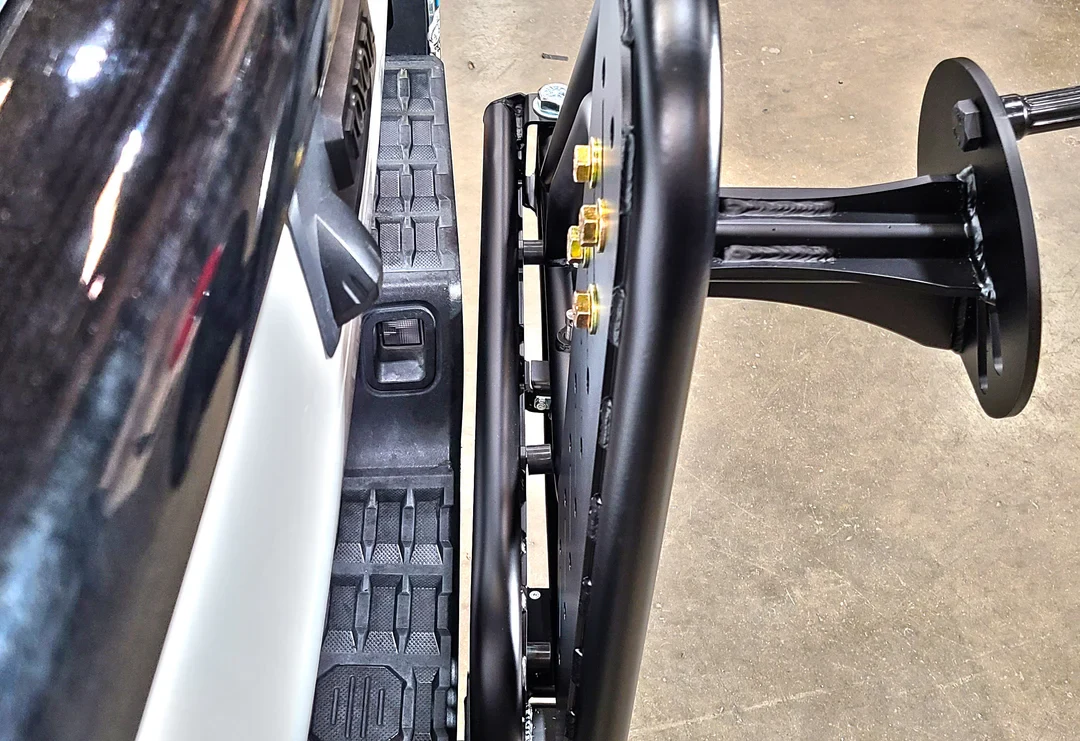

• Auto latching hinge locator (Upgraded on V3) locks the arm in 3 open positions. The locator pin slides along a stainless steel plate with 3 hole positions. The locator pin can also be set to a free swing position. Keep your hands free and avoid the hassle of manually placing pins in the hinge. For trucks and vehicles with a drop-down tailgate, contact us before ordering to confirm hinge-locator configuration and tailgate clearance.

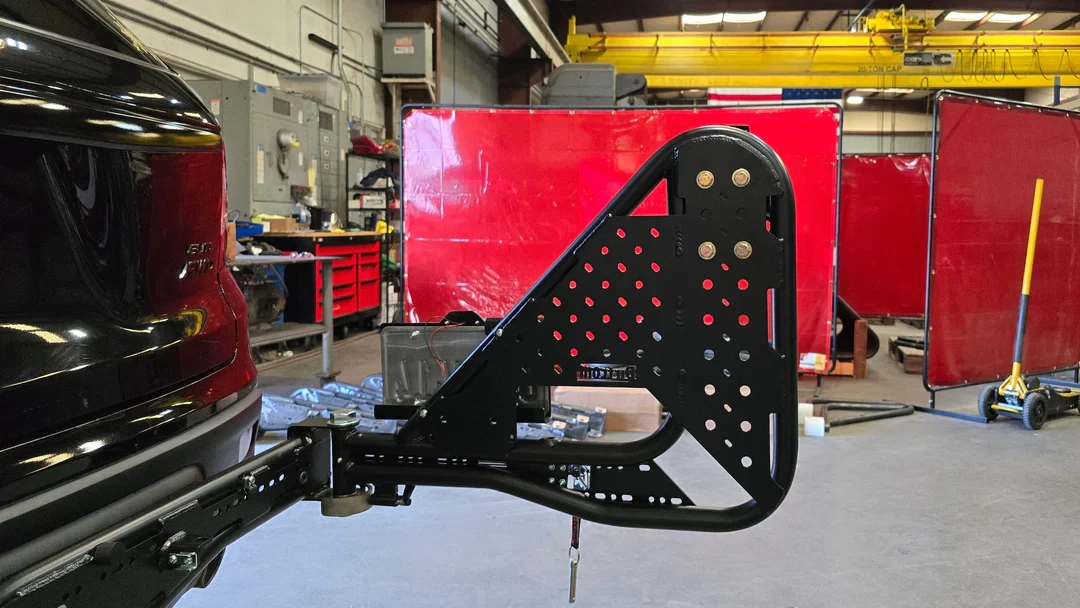

• Built in Mounting Points (Upgraded and Expanded on V3), mount your rotopax and license plate straight to the swing arm. Mount a Front Runner table with our Table mounts. 3/16" plates are laser cut with multiple holes to enable you to easily mount your own accessories with as large as 1/2" bolts.
• 1,000 lb. latch-component rating (Upgraded V3) to keep your gear secure. This is the latch rating, not the carrier’s payload capacity.
• Stainless steel safety pin This 12mm diameter pin will keep the arm secured and rattle free even if the latch is accidentally opened.
• Anti wobble hitch (Upgraded Solid Billet V3) mechanism keeps the tire swing from rattling in your vehicle tow hitch.

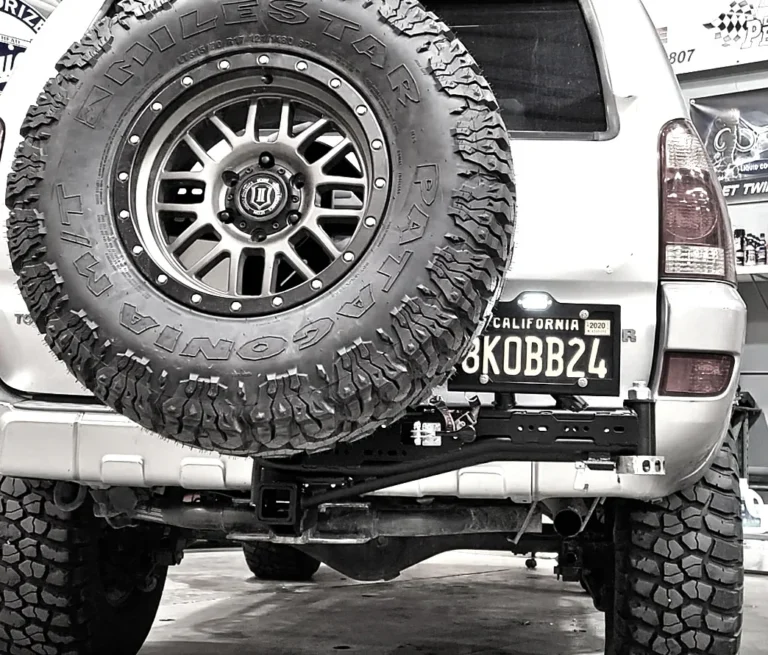

• Wheel/Tire Mount. (Upgraded V3) Everything you need to mount your spare tire. Lug nuts and wheel studs included. Top wheel stud is welded on for ease of installation.

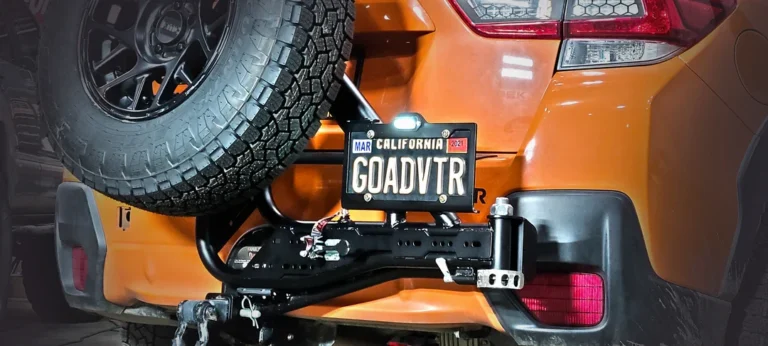

• Integrated License Plate Mount. Comes with an integrated license plate mount.
• License Plate Light. Yes, it comes with a light!

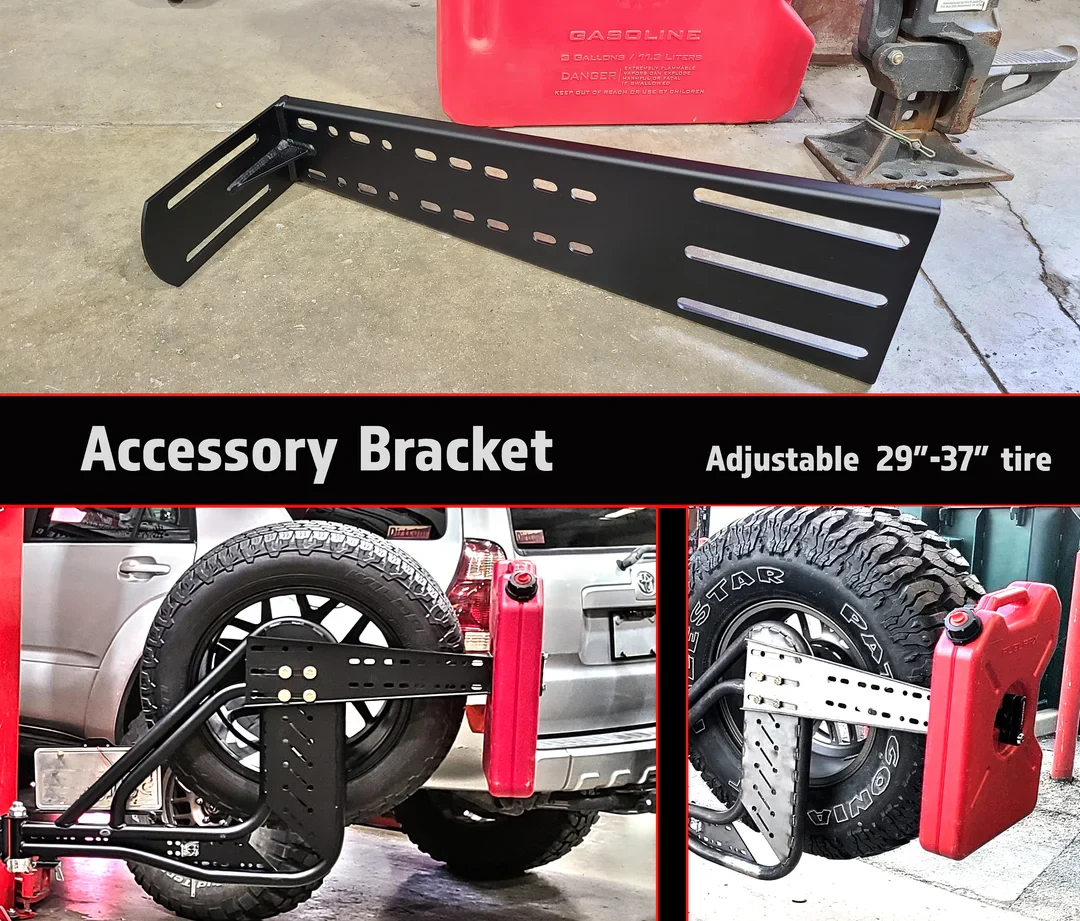

• Trail Bracket. Mount your rotopax and other accessories behind or on the side of the tire! You can mount one on the rear and side at the same time for 2 rotopax. Additional Cost
• Accessory Hitch. The accessory hitch bolts on with no modification to allow mounting of tow hitch accessories such as bike racks. This accessory hitch bolts on using 4 large M12 bolts (same diameter as your lug nuts) so you know it's sturdy! It also has a built in anti rattle system. Additional Cost
• Seamless Integration. The Trail Bracket, Accessory Hitch, and Fold down table were designed in unison. You can use all 3 at the same time!

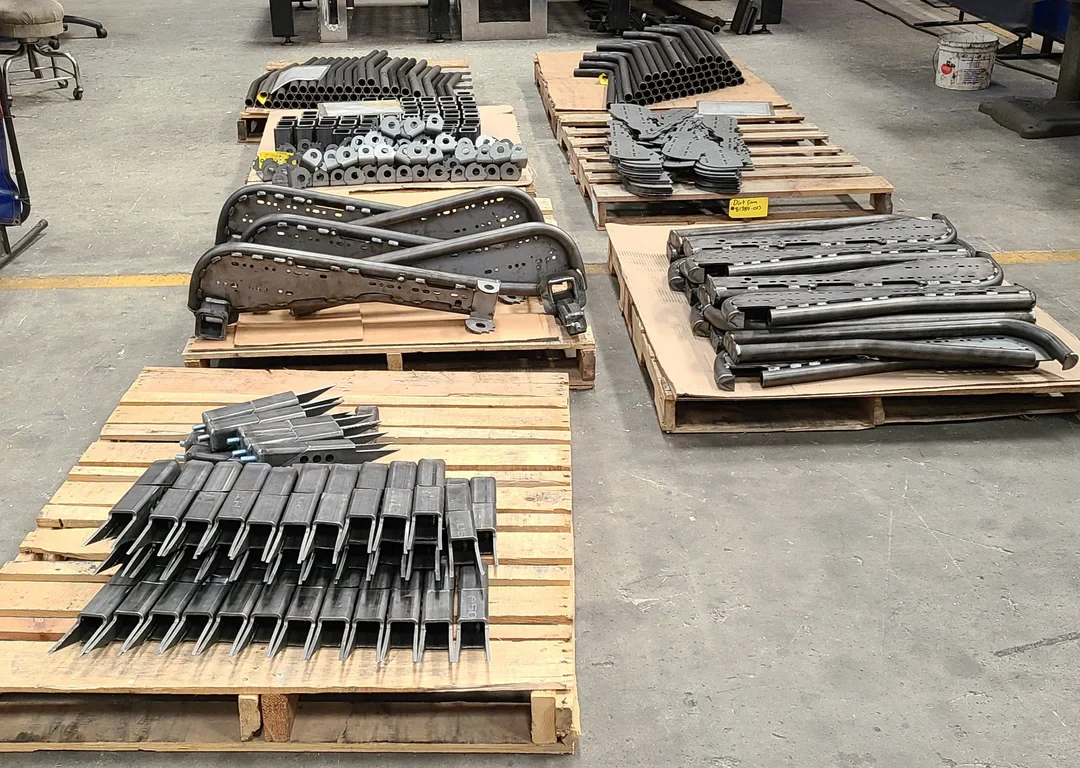

Build

• • • 1.5" .120 wall chromoly tubing for added strength and style. Chromoly has a higher strength to weight ratio than hot rolled and cold rolled steel tube. These parallel chromoly tubes are plated with 3/16" steel for added strength.
    • 2" Tow hitch receiver with billet hitch and wedge Class 4 tow rating: 10,000 lb, tested to SAE J684. Follow the limits of your vehicle and complete towing setup.
    • High Strength Steel Plates. We go beyond standard sheet metal and use structural high strength A572 grade 50 steel throughout. Almost twice as strong as your standard hot rolled steel plate.
    • Dirtcom EPDM rubber pad will add extra strength and support. We located this directly under the tire to relieve stress on the hinge to withstand rough off road conditions. Strategically placed rubber stoppers are placed throughout to absorb vibration and keep your TrailSwing rattle free.
    • Tire mount. The tire is tilted to move the center of gravity over the hitch. Also it just looks better. The 1/4" steel used in the tire mount will ensure a strong, long lasting mount. Offered in multiple lug patterns. The wheel studs and included lug nuts are M12x1.5.
